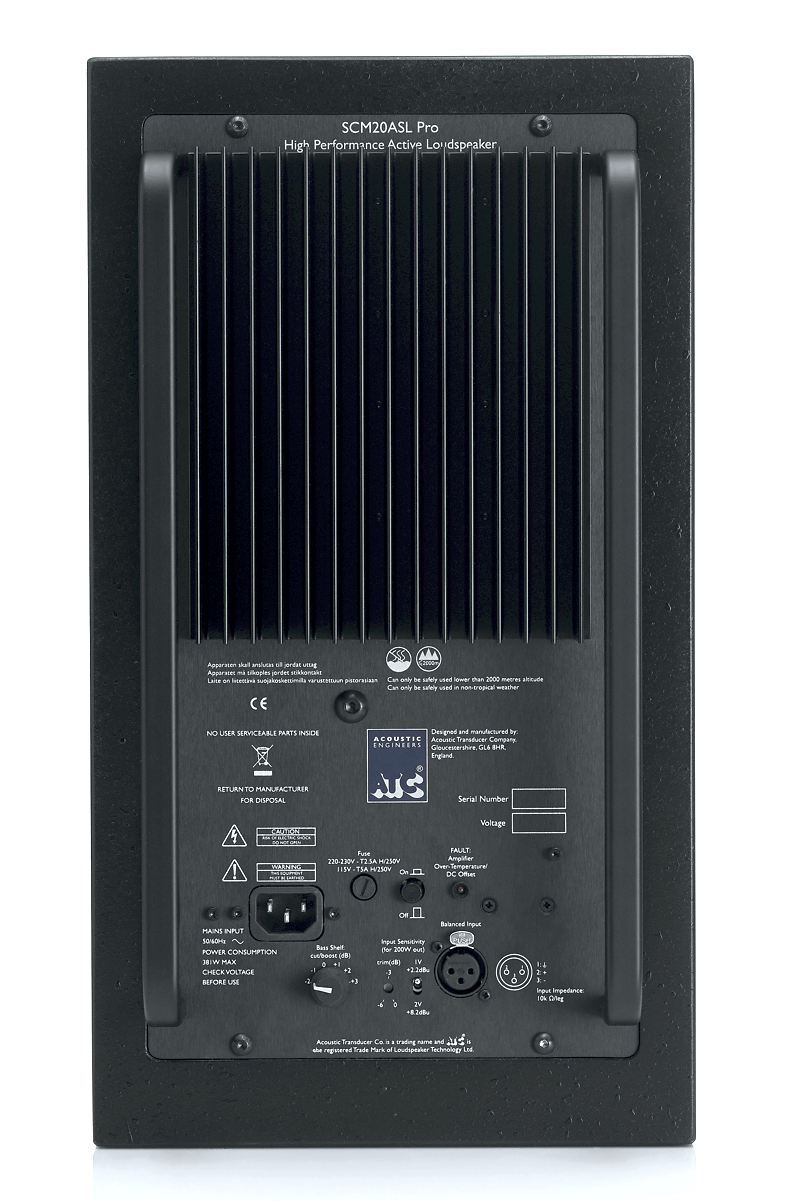

SCM20A Pro Mk2
Overview
- Compact very high performance 2-way studio monitor ideally suited to:
– critical near-field listening applications in all control rooms
– LCR surround monitoring in small-to-medium control rooms
– surround channels in medium-to-large control rooms - Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
- Proprietary ATC 25mm/1” S-Spec Tweeter
- Discrete MOSFET class A/B bi-amp pack with 200W/50W
continuous power output
Technical Specification
Drive unit – Low Frequency (LF): 6.5”/150mm Super Linear with 75mm/3″ voice coil (SB75-150SL 8 Ohm)
Drive unit – High Frequency (HF): 1”/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)
Amplitude Linearity (±2dB): 80Hz-20kHz
Cut-off Frequencies (-6dB, free-standing): 55Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 108dB
Crossover Frequency: 2.1kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: -12dB (1V – 4V)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, High 50W
Filters: 2nd Order Critically Damped
Overload Protection: Active FET momentary gain reduction
Front Panel Indicators: Power On indicator, Gain Reduction warningPhysical Dimensions
Dimensions (HxWxD): 450 x 250 x 392mm (17.72˝ x 9.84˝ x 15.43˝)
Weight: 23.4kg / 51.6lbs
