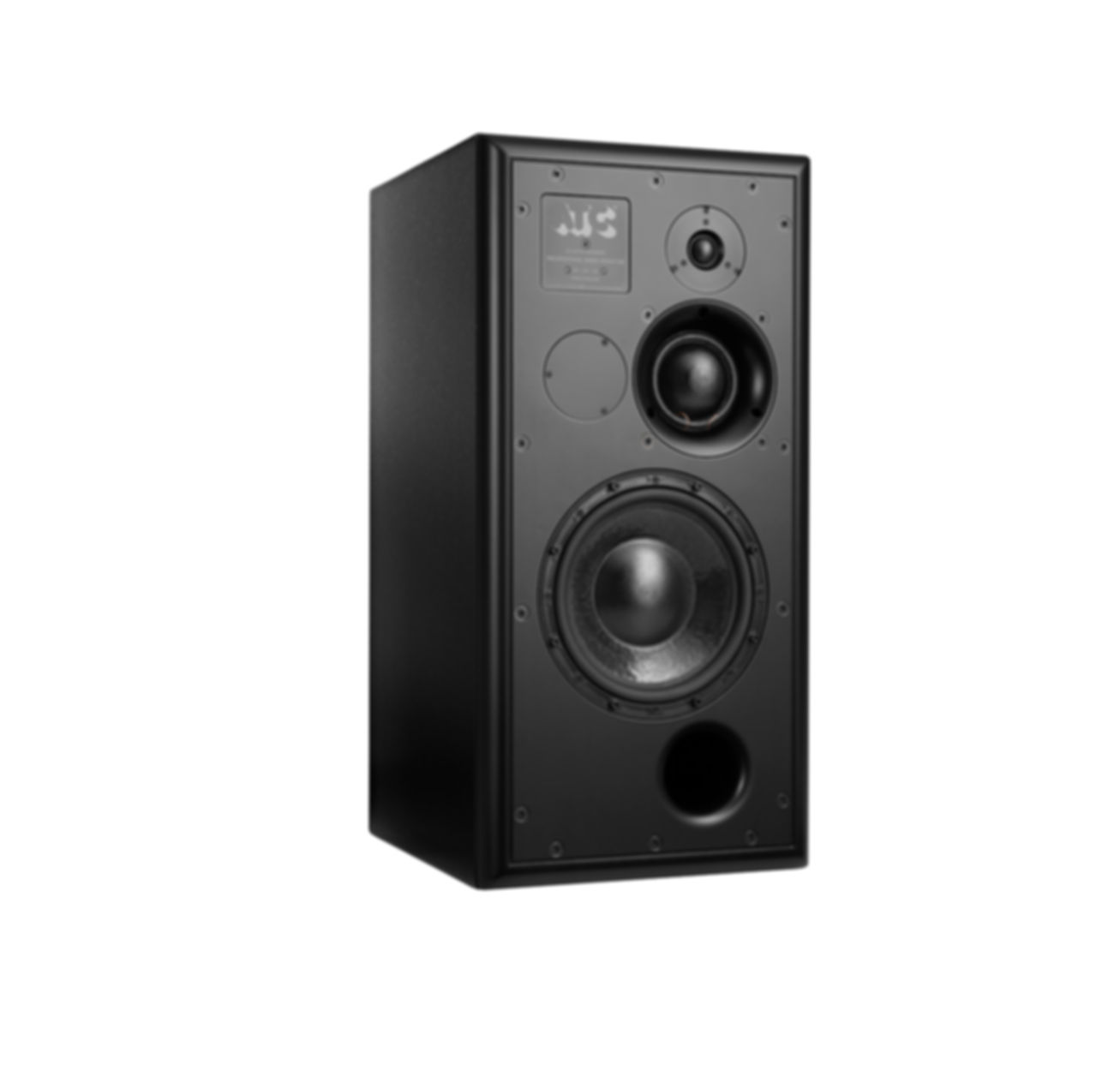

SCM50A Pro

£14,950.00

Overview

ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
Full “SL” spec 9˝/234mm bass driver.
ATC 75mm “Super Dome” mid driver.
On board grounded source 350W Tri-amp pack.
LF contour control.
Clip indication.
Centre models are for us in LCR sourround arrays, have vertically-aligned drivers, and are sold as single units.
6 year warranty.

Quantity

Technical Specification
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction (amplifiers)
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Physical Dimensions
Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝
Weight: 49kg / 107.8lbs
In-Wall Monitors
Model Notes
In-Wall / Soffit Mount models have full-face square edge baffles & a recessed connector panel in rear.

Remote amp hardware is required, as well as NL8 speaker cables & 5-pin XLR LED cables - sold seperately. Cable lengths must be specified – Max. 10m recommended.
